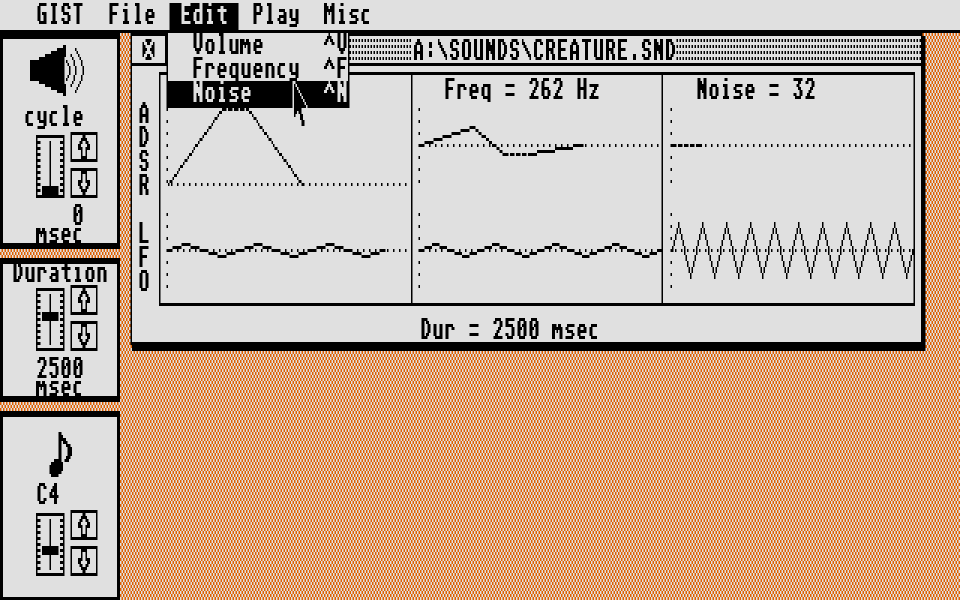

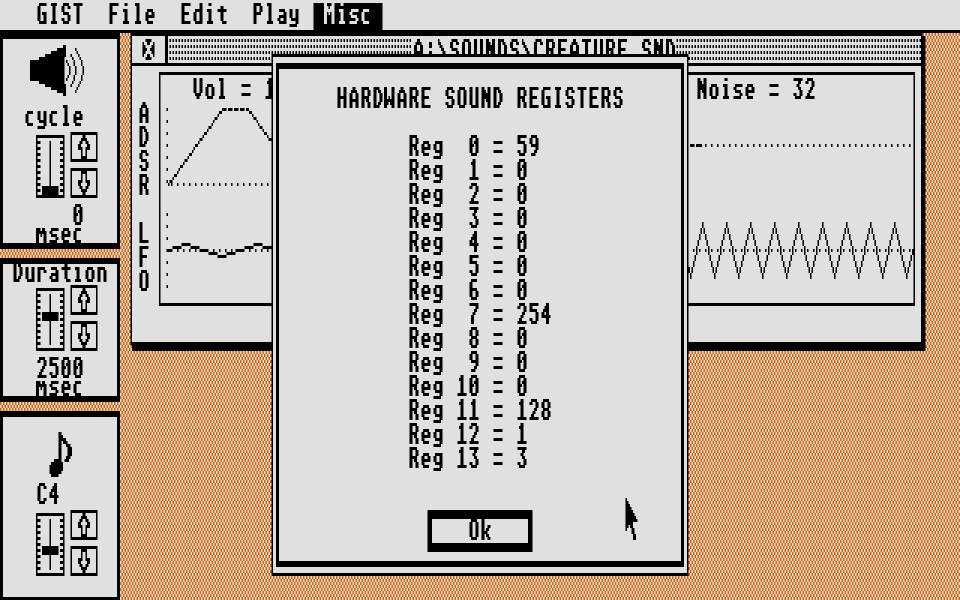

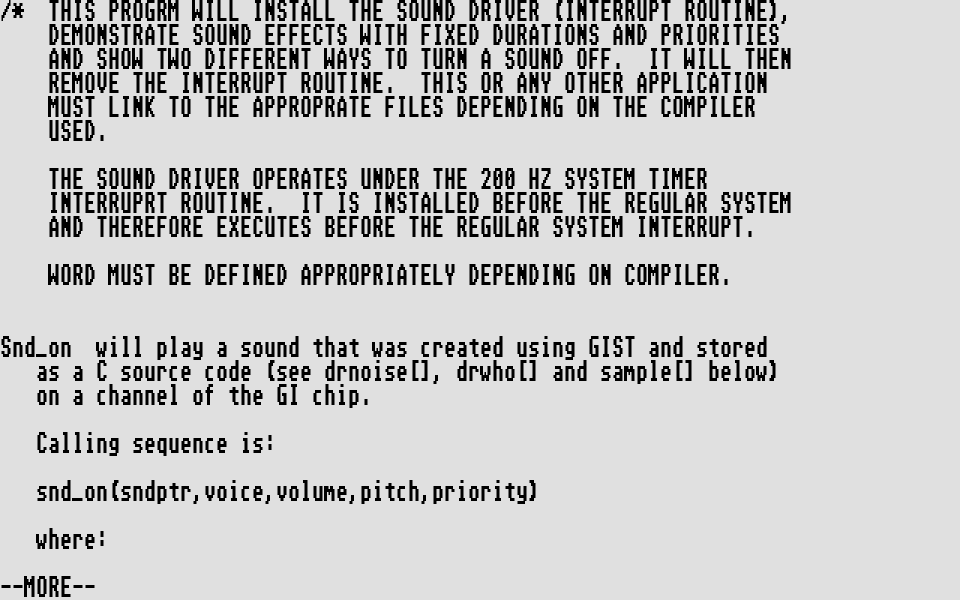

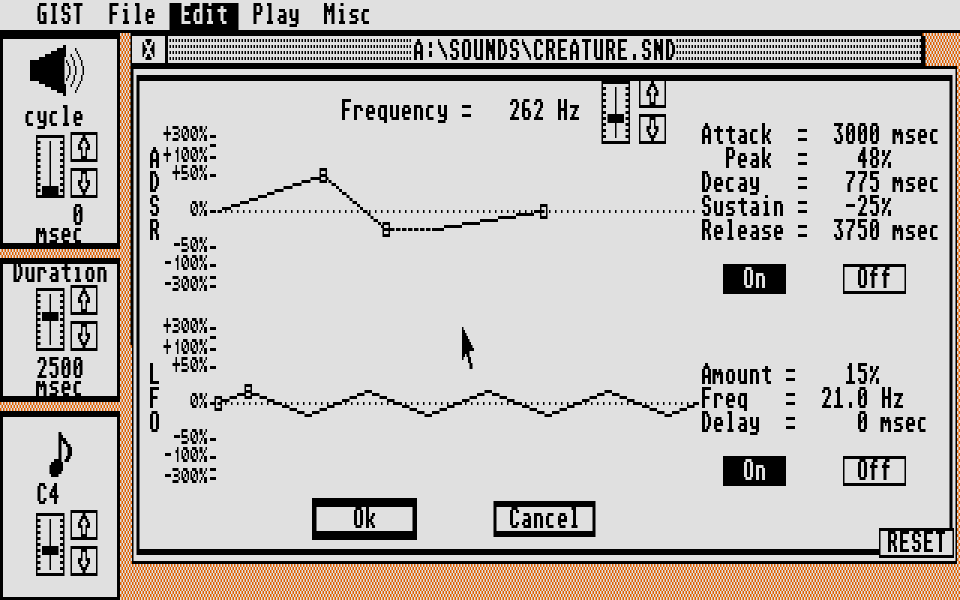

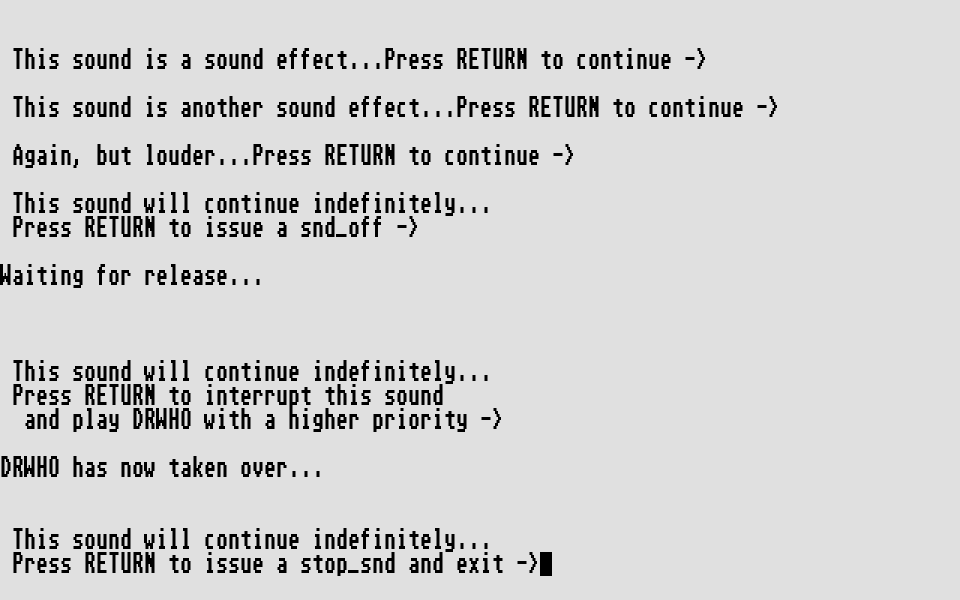

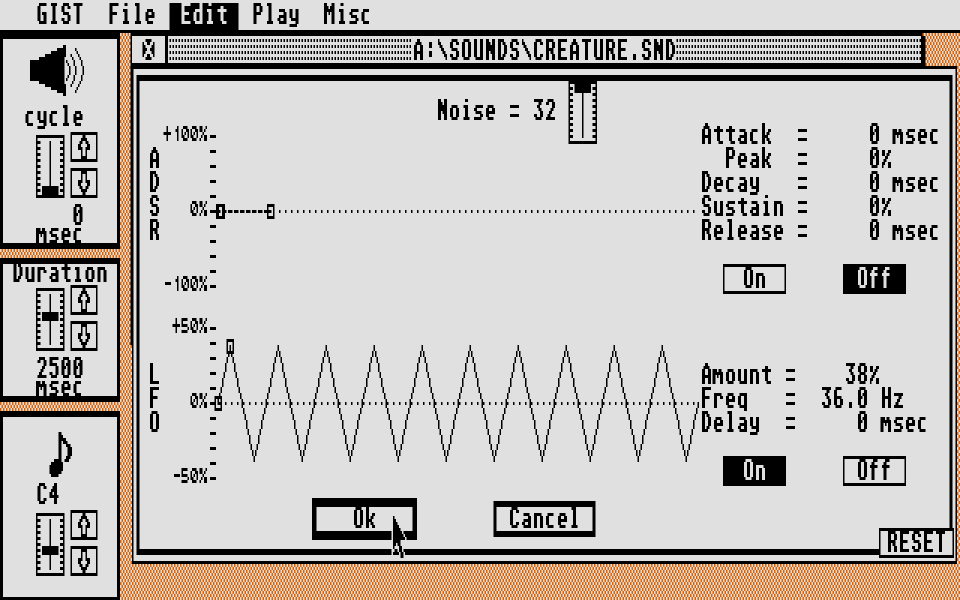

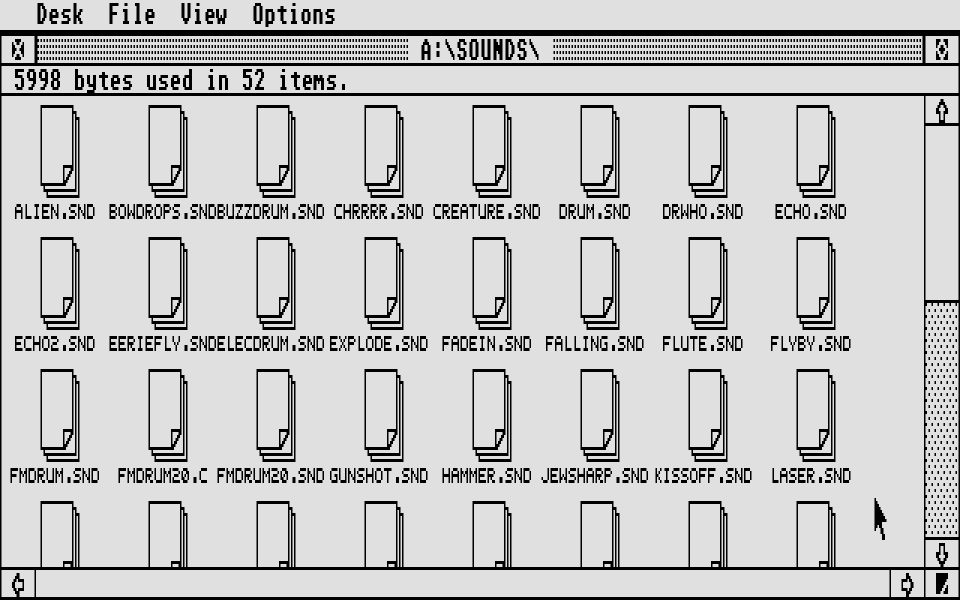

Screenshots - GIST

GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot
GIST atari screenshot

Information - GIST

GenreMusic / SoundYear1989
Language[unknown]PublisherAntic Publishing
DeveloperSynthetic SoftwareDistributor-
ControlsMouse, MIDI-DeviceCountryUSA
Box / InstructionsEnglishSoftwareEnglish
Programmer(s)

Levenberg, Gary / Actor, Lee

LicenseCommercial
SerialST TypeST, STe / 0.5MB
ResolutionMedium / HighNumber of Disks1 / Single Sided
Dumpdownload atari GIST Download / STMIDIYes
Protection

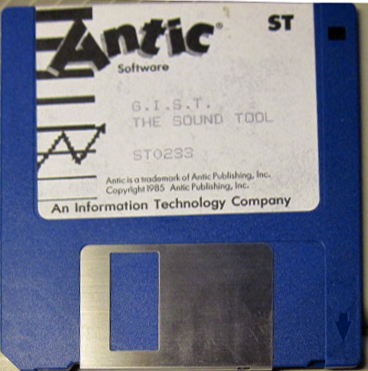

Disk - GIST

GIST Atari disk scan

Instructions - GIST

                              ANTIC PRESENTS GIST

                                      by

                              SYNTHETIC SOFTWARE

      Design:  Lee Actor and Gary Levenberg
    Software:  Lee Actor



    PREFACE

    Antic is a trademark of Antic Publishing, Inc.  GI Sound Tool (GIST) is
    a copyrighted work by Synthetic Software.  Copyright (c) 1986 Synthetic
    Software.

    GIST is provided on an unprotected disk because the authors and Antic
    both believe that the buyer should be able to make backup copies for
    his or her use ONLY.  Because it is unprotected, we expect you to
    respect the copyright and NOT give, sell or even lend copies of this
    program to anyone else.

    The author spent many hours designing, writing and testing this
    product.  His income depends on its sales.  The unauthorized
    reproduction of the GIST diskette is illegal.  Please help us to
    protect and enforce the author's rights in this product so that we may
    continue to provide you with unprotected software.  No part of this
    product may be reproduced and/or distributed in any form or by any
    means without the prior written consent of Antic.

    Antic and Synthetic Software disclaim responsibility for any damages
    resulting from the use or misuse of this software product, and
    disclaim liability for losses of any kind or nature, financial or
    otherwise, incurred or alleged to have been incurred as a result of the
    purchase and use of this product.

    For further information and an in depth discussion of sound generation,
    refer to "Hot Sounds" by Gary Levenberg and Lee Actor in the Winter
    1986 issue of STart Magazine.


























                      Permission to use GIST Sound Driver


    Any individual or company having purchased GIST may obtain permission
    to use the GIST Sound Driver in their commercial application, program,
    or game.  Simply write to Synthetic Software at the address below
    describing your product and when it will be released.  For our
    information, please include which compiler you are using.

    Permission for use of the copyrighted GIST Sound Driver (C) 1986
    Synthetic Software is only available through a written request.


    Synthetic Software
    880 Wisconsin Street
    San Francisco, CA  94107
    (415)-285-8832

















































                               TABLE OF CONTENTS

                                                     Page


    1 INTRODUCTION                                   1

    2 OVERVIEW                                       2

    3 UNDERSTANDING GIST                             2

        3.1 THE ADSR ENVELOPE                        2

        3.2 NSQ DYNAMIC SOUND                        3

        3.3 DURATION                                 5

        3.4 LFO                                      6

        3.5 FREQUENCY AND NOISE                      7

    4 REFERENCE GUIDE                                8

        4.1 GEM MENUS                                8

             4.1.1 File                              8

             4.1.2 Edit                              8

             4.1.3 Play                              9

             4.1.4 Misc                              9

        4.2 EDIT DIALOG BOX CONTROLS                10

        4.3 ICONS                                   11

    5 ADVANCED USE:  SOUND DRIVER                   12

        5.1 DESCRIPTION                             12

        5.2 PRIORITIES                              12

        5.3 SOUND FILES AND DATA                    13

        5.4 HOW TO PLAY A SOUND                     14

        5.5 IMPLEMENTATION                          14


















    1 INTRODUCTION

    Sounds computers make include the din of video arcades, the almost
    human voice of the telephone-number-reader at information, the beeps
    and squeeks of your corner banking machine, and the sophisticated
    sounds of modern music synthesizers.  Your Atari ST computer contains a
    sound-generator chip that directly drives the speaker in its monitor.
    It's capable of making a wide range of musical notes and sound
    effects.

    Atari chose the Yamaha YM2149 software-controlled sound generator for
    their ST computers.  Designed originally by General Instruments (GI),
    this chip has been around for a number of years and, with all the
    current developments in sound generation, it seems obsolete by
    comparison.  But don't be discouraged; with the help of the ST's high
    speed microprocessor, the sound chip can generate sounds nobody would
    have dreamed of.

    GIST (GI Sound Tool) is a graphic-oriented sound editor for the Atari
    ST.  A motivating force in designing GIST is the opportunity to
    establish NSQ -- Near Synthesizer Quality -- a standard on the Atari
    that can be shared by developers and hobbyists alike.  We intend to
    make entire libraries of sounds available through bulletin boards,
    users groups, and magazines such as START.

    Part of the GIST package is the Sound Driver.  This is a linkable
    module that you can use in your own application or game to play the
    sounds you create using GIST.  We have supplied versions for Alcyon,
    Megamax, Lattice and GST.  If you use any of these compilers or
    assemblers, you can easily incorporate sounds into your own program.
    The Sound Driver is also able to support your efforts toward
    integrating music in you programs.  For more information, see section
    6, "Advanced Use."  If you are familiar with synthesizers, you may want
    to go immediately to the Reference Guide on page 8.




    2 OVERVIEW

    GIST works on an Atari 520ST or 1040ST with one or two floppy disk
    drives and/or a hard disk drive.  It operates in monochrome or
    medium-resolution color but not low-resolution color.  It makes use of
    the mouse, GEM and the keyboard where appropriate.  Any MIDI compatible
    musical keyboard can be used to play your ST.

    Make a back-up copy of the disk with all the files on it and store the
    original in a safe place.  Use the back-up disk for day-to-day work.

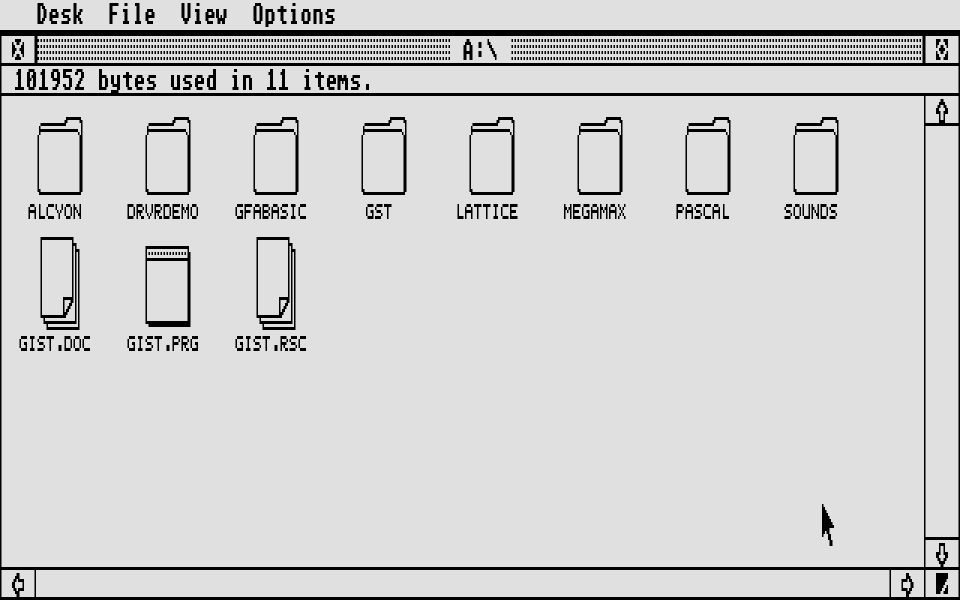

    To run GIST you need both GIST.PRG and GIST.RSC on the disk.  There are
    sample sound files on the master disk (all sound files have a .SND
    extension and are located in the EXAMPLES folder).  All other files and
    folders are for use with the Sound Driver.

    To load GIST, double-click on the icon or name GIST.PRG to load the
    program.  Once GIST has loaded, you can remove the GIST disk and put in



                                    Page 1







    a disk for sound files.  You may keep your sound files on a second
    drive, a hard drive, or a RAMdisk.

    Once in GIST, you can load a sound file or open a new one and edit that
    file.  The icons are used to play a sounds.  You can even use a MIDI
    keyboard to play notes.




    3 UNDERSTANDING GIST

    The basic component of each sound is a square wave, a digitally
    generated waveform that sounds much like an electric clock or buzzer.
    To hear this sound, load the program and using the mouse select File
    from the menu bar.  Click on New to open up a window with the default
    sound, a square wave.  In order to hear this sound, click on the
    speaker icon.  You will hear a square wave.  It is not very
    interesting.  GIST takes this as the basic component and allows you to
    create a wide variety of sounds.

    In designing sounds electronically, the goal is to create a sound that
    is "alive," i.e., dynamic, not static.  A square wave is static.  What
    distinguishes a live acoustic sound from an electronic one is how it
    changes over time.  A horn is a constantly changing sound, as is the
    ocean or rain.  If you add dynamic control through the use of envelopes
    and other devices, the electronic sound has a much better chance of
    sounding like what we want.  Dynamic control is the ability to modify
    the sound as it is happening.

    The components of the sound that we can change are the volume, pitch
    and noise.  The volume is how loud the sound is; the pitch is what
    musical note we perceive; and noise is white noise, a randomly
    generated waveform that sounds like steam escaping from a radiator.  To
    hear an example of white noise, select File from the menu bar and click
    on Open...  A file selector will appear.  Double-click on NOISE.SND.  A
    new window will appear over the previous window.  To hear this new
    sound, click on the speaker icon.  You have now heard the two building
    blocks used to generate new sounds.



    3.1 THE ADSR ENVELOPE

    Most sounds have an overall shape -- a beginning, middle and an end.
    This is sometimes called the ADSR envelope because the shape of any
    sound can be broken down intofour parts: Attack, Decay, Sustain and
    Release (ADSR).  Many synthesizers have ADSR capability, i.e., they can
    generate the Attack, Decay, Sustain, and Release.

    When a horn player begins blowing a note, the first part is
    characteristic of the instrument as it responds to the changing air
    pressure.  Typically the volume rises quickly to a peak.  This is the
    Attack, and is what makes a horn sound like a horn.  If you heard the
    same sound with the first part cut off, it would sound like an organ.



                                    Page 2








    The Attack is usually louder than the rest of the note.  It reaches a
    peak then will Decay back down to the level you hear for the duration
    of the note.  This level is called the Sustain level.  When the note is
    over, the horn player stops blowing, but the air left in the horn
    enables the sound to linger for just a short time as it fades away.
    This is called the Release.  The Release is second only to the Attack
    in your perception of a sound.  In contrast with the horn, a square
    wave has no basic shape and thus when heard without any modification,
    starts and ends abruptly.

    ADSR is an abstract structure that has been applied to sound for
    purposes of analysis.  The horn player has never heard of it.  But for
    us to be able to manipulate sound electronically, a structure is
    required.  An electronic ADSR follows a prescribed pattern:  When a
    note is begun, this event is referred to as a NOTE ON.  The NOTE ON
    initiates the Attack phase of the sound, during which the volume of the
    sound goes from zero to its maximum value.  This value is the actual
    volume of the sound.  The Decay portion follows immediately after the
    attack as the volume decreases.  The Decay time is the period it takes
    to reach the Sustain level.

    It is important to realize that Sustain is a level, not a time.  It is
    the volume of the tone after the decay.  The time is indeterminate and
    depends on the Duration of the note.  The Duration is the length of the
    note and can range anywhere from a few milliseconds to minutes.  When
    the Duration is over, this event is referred to as a NOTE OFF.  But the
    actual sound is not over; NOTE OFF signals the beginning of Release.



    3.2 NSQ DYNAMIC SOUND

    The ST sound chip is programmable.  So we took its basic
    features,letting the chip generate the initial square wave, and created
    controls that are considered essential on professional synthesizers.
    Two types of modification (ADSR and LFO) to volume, frequency, and
    noise are available.  These modify the general waveform in real-time
    (at incredibly high speeds, as the sound is actually made), allowing
    dynamic control of sound generation.  Using GIST, you can make truly
    exciting sounds on the ST.

    GIST does not use the built-in ST envelope generators.  The confinement
    of only a single envelope generator with a very limited set of shapes
    prompted us to design a system which would allow a higher degree of
    control.  The single envelope generator has been replaced with nine
    ADSR envelopes and nine LFO's, three apiece for each channel.  (LFO's
    will be explained later.)

    Load BELL.SND.  Do this by moving the mouse over File and selecting
    Open... in the menu that drops down.  Listen to it by clicking the
    speaker icon.  This uses an ADSR envelope to generate the distinctive
    "twang" of a bell.  Look at the volume ADSR.  To examine the actual
    values, select the Edit menu and click on Volume in the drop-down menu.
    (If you prefer, you can also double-click anywhere in the volume box of



                                    Page 3







    the sound.)  The volume edit box will now appear.  The envelope values
    are listed as Attack, Decay, Sustain and Release.  All times are in
    milliseconds (msec--0.001 second, or 1/1000 of a second).  The Attack
    time, 5 msec, is as fast as it can go; it takes 5 msec (almost
    instantaneous) for the level of the sound to reach full volume, the
    value designated in Volume.  This is the Attack and sounds no different
    than the sharp ON of a squarewave.  What makes this sound like a bell
    is the Decay and Release.  Once full volume is reached, the sound
    decays to the Sustain level in 100 msec, about 1/10 of a second.  The
    Sustain level is 80 percent of the full volume (a value of about 12).
    The time it takes to reach the Sustain level is the sum of the Attack
    time and the Decay time.  In this case, 5 msec + 100 msec = 105 msec.

    When you play the sound, the Attack phase is initiated.  When the time
    designated by Duration has elapsed, the Release phase is initiated.
    Selecting the Speaker icon (on the upper left side of the desktop)
    plays the sound at the frequency determined by the frequency parameter
    (displayed in the frequency edit box).  The duration value is stored
    with the sound and can be modified from the desktop by moving the
    Duration "fader" with the mouse.  The "fader" is the small rectangular
    box next to the word Duration on the left hand side of the desktop.  It
    is a horizontal bar that can be moved up and down along the hash marks.
    Use the mouse and either button to "grab" the bar to adjust the fader.
    For fine control, click on the arrows next to the fader.  Note how the
    value in the sound window changes simultaneously.

    In order to have a sound continuously repeat, you can set a "cycle
    time" with the fader below the speaker icon.  If the cycle time is
    zero, the speaker icon, when selected, will "light up" briefly as the
    sound starts.  The note will complete its duration and stop.  If the
    fader is set to any value, n, greater than zero, the speaker icon will
    remain "lit up" and the sound will be restarted every n milliseconds.

    Selecting the Note icon (on the lower right portion of the desktop)
    differs from the Speaker icon in that it is more like pressing and
    holding a key on a MIDI keyboard:  the Sustain level is maintained
    while you are holding down the mouse button.  In order to begin the
    Release phase of the ADSR envelope release the mouse button, which is
    like releasing a MIDI key.  Also, the Note icon uses the Pitch
    parameter to select the frequency of the sound, rather than using the
    frequency value stored with the sound.  You can change the Pitch by
    clicking on the Pitch fader and sliding it up or down.  Pitch is a
    musical term related to notes:  musical notes have a set frequency, but
    not all frequencies correspond to notes.  As with duration fader, you
    can use the arrows for finer control.

    Move the mouse over the Speaker icon and press the mouse button.  Since
    the duration of the sound is 100 msec and the length of the
    attack/decay sequence is also 100 msec, as soon as the Sustain level is
    reached, the Release phase begins.   But, even without the Sustain
    portion, we still hear a sound!  The Release phase of the sound is the
    part that is heard after the note is turned off.  To understand this
    better, you can compare this to another similar sound.  Select OK or
    Cancel to close the edit dialog box of the current sound, and load in
    BELL2.SND and turn it on (this means to select the Speaker icon unless



                                    Page 4







    specified otherwise).  Note how much longer this sound lasts.  To play
    BELL.SND again, click anywhere on its window to make it active, then
    turn it on.  Listen to both sounds again.

    The only difference between the two sounds is the Release time.
    BELL.SND is 405 msec and BELL2.SND is 1920 msec, nearly two seconds.
    To examine the parameters of the current window, select Edit from the
    menu and click on Volume.  To change any of the values, simply use the
    mouse to select Edit from the menu bar.  Then click on Volume,
    Frequency, or Noise.  Remember, you can also double-click on the graph
    you want to edit.  In any case, an edit dialog box will appear.  The
    top of the box contains the ADSR and the bottom the LFO.  All values
    are changed by modifying the graphic waveform with the mouse.

    Use the left mouse button to select any of the small boxes on the
    graphic displays.  You can either move the cursor to the box and then
    grab the box  by holding down the left mouse, or you can hold down the
    left button and then move the cursor to one of the boxes.  Once it is
    within reach, the box will be grabbed.  To stop changing a value,
    simply lift your finger off the left mouse button.  On the ADSR, the
    leftmost box is Attack, the next controls Decay and Sustain, and the
    rightmost box controls Release.  To only move Decay or Sustain, holding
    the Shift key down will only allow up and down movement, while holding
    the Control or Alternate key will only allow right or left movement.
    [NOTE:  An ADSR with the Peak level the same as the Sustain, by
    definition has an instantaneous Decay.]  On the LFO the leftmost box
    controls Delay, and the right box controls Rate and Frequency.  The
    Shift, Control and Alternate keys act in the same fashion as with the
    ADSR.  Try different values for yourself to hear the effects.



    3.3 DURATION

    Duration is important enough to merit a special case.  For example, the
    horn player knows how to blow the horn for a very short duration.  But
    what happens when the duration is less than the attack and decay time?
    Try it.  Set the duration to 10 msec.  To do this, use the mouse on the
    "fader" to set the duration value.  The sound still sounds basically
    the same.  That is because it is important when designing a sound to
    consider what might happen when the duration is extremely short.  The
    rule is this:  if a NOTE OFF occurs before the sound reaches its
    Sustain level, it goes into its Release phase.  Remember: NOTE OFF
    signifies the end of Duration.  If the NOTE OFF occurs during the
    Attack, the sound will not reach full volume and will immmediately
    begin the Release phase at its current volume.  If it is in the Decay
    phase, the Sustain volume will not be reached and the Release phase
    will begin starting at the current volume.  Change the Release to 5 and
    leave the duration at 10 msec, you will hear a very short sound.

    It is important to consider what the likely duration of a sound is
    going to be during its design.  If a duration of less time than the sum
    of the Attack and Decay time is going to be possible, you should
    specify an appropriate value for Release.  Try your sound with both
    long and short durations.  That is the best way to be sure what is



                                    Page 5







    going to happen.

    Consider another way to make the bell sound.  Load in BELL3.SND.  Its
    Attack time is the same as the other sounds, but the duration is 505
    msec, the Decay is 500 msec, and the Release is 0.  Yet, it sounds very
    similar to BELL.SND.  The difference is that this sound is complete
    when the Duration has elapsed.  There is no Release phase.  Try playing
    this note with a duration of 100 msec.  It will just stop mid-note
    after 100 msec.  But if you set the Sustain level to 80 and the Release
    to 405, it will sound more like BELL.SND.  You can experiment with the
    Sustain level to make it sound just like BELL.SND (you could of course
    change the Decay time, but you can leave the Decay at 500 and adjust
    the Sustain level instead).  This is just to show you the variety of
    ways you can alter sounds.

    Now close BELL3.SND and open LONGBELL.SND.  This is a more complex
    version of the BELL sounds.  First of all, notice that the Release time
    is longer.  Set BELL2.SND to the same Release time (3840 msec).  Now
    compare the two sounds.  Notice how much more interesting LONGBELL.SND
    is.  Some of the differences are subtle, but this is a simple example
    of how intricate you can get.



    3.4 LFO

    The main enhancement in LONGBELL.SND is the use of the LFO's with both
    volume and frequency.  LFO stands for Low Frequency Oscillator.  The
    LFO's are triangle waves that modify a parameter by repeatedly
    increasing, then decreasing the parameter value at a specified rate.
    For example, the volume LFO in LONGBELL.SND modifies the volume by 10
    percent.  Since volume is 15, it will range over a value from 15 to 15
    minus 10 percent of 15.  The maximum LFO frequency is 50 Hz.  That
    means the fastest triangle wave you can have will cycle at 50 times per
    second.  The LFO frequency for LONGBELL.SND is 5 Hz.  Therefore, the
    volume will continuously change its value at a rate of 5 times every
    second.

    Frequency LFO works the same way, but it modifies the frequency
    instead.  To examine the values for the Frequency LFO, select Frequency
    from the Edit menu.  The example LONGBELL.SND uses both volume and
    frequency LFO to give the bell a more realistic quality.  Typically, an
    LFO on volume is called tremolo (listen to TREMOLO.SND), and on
    frequency is called vibrato (listen to VIBRATO.SND).  An example using
    both LFO's is EERIEFLY.SND.

    To change the values of an LFO, select one of the two small boxes on
    the LFO display.  The leftmost box adjusts the Delay time, i.e., the
    amount of delay before the LFO takes place.  The second box adjusts
    both the Amount and Frequency.  To adjust only the Amount, hold down
    the Shift key to move the box only in a vertical direction.  Holding
    down the Alternate or Control key will allow movement in the horizontal
    direction only, to adjust Frequency without altering Amount.

    LFO's at lower frequencies (under 15 Hz) add a "wobbling" effect to



                                    Page 6







    your sounds (like tremolo and vibrato). This is because the changes are
    happening so slowly that your ear is able to resolve them.  LFO's at
    higher frequencies (from about 15 to 50 Hz) can actually change the
    basic characteristics of the sound.  Load VIBRATO.SND and listen to it.
    Adjust the frequency LFO to change the frequency and amount to its
    maximum value.  Now play the sound.  It sounds nothing like the
    original sound.  You can do the same with TREMOLO.SND, however, the
    result is not quite as pleasing.

    You can get a tremendous variety of sounds just with the frequency LFO.
    For example, listen to DRWHO.SND, EXPLODE.SND, FALLING.SND and
    LASER.SND.  This is just a small sampling of the sounds you can make.



    3.5 FREQUENCY AND NOISE

    Another very important control is the frequency ADSR.  It is very
    similar to the volume ADSR, but the difference is important.  When you
    select any ADSR but volume, one parameter is called Peak.  You can't
    change this value on the volume ADSR, because the volume Attack always
    remains at 100 percent.  But the frequency ADSR can be varied to higher
    levels.  A 100 percent change equals one octave, so the value -300
    would lower the frequency ADSR by three octaves.  For this reason, you
    can move the leftmost box on the ADSR both up and down.  You are
    adjusting both the Attack and the Attack level, referred to as Peak.
    Note that the Peak value can be set as high as 800%.

    Similarly, the frequency Sustain level can be over the same range.
    This allows for a frequency to be controlled over a range from eight
    octaves above to three octaves below the initial frequency.  The
    Release will always bring the sound back to the original pitch.  But if
    you put in a large enough Release, for example, 30000, and a much
    shorter volume Release, possibly 100 msec, the original pitch will not
    be heard.  This is the case with the DRWHO sound.

    Another use of this type of control is evident in PLUCK.SND.  The
    beginning of the sound appears to have a "plucked" sounding attack.
    This is made possible with a very short frequency Attack and Decay and
    a large Attack level.  This technique is very useful in many percussive
    sounds.

    The final control to be discussed is the Noise ADSR and LFO.  This ADSR
    acts just like the frequency in that it can go both postive and
    negative and allows you to adjust the Attack level.  Also like
    frequency, you are shaping the frequency components of the white noise.
    Select a New sound.  Now turn off the square wave by setting Frequency
    to zero in the Frequency dialog box.  Close this dialog box and open
    the noise dialog box.  Using the Noise fader, set it to 32.  Play the
    sound.  It sounds like steam being released or someone telling you to
    "Sh-h-h-h."  This contains mostly high frequency components.  Now
    change the noise value to 1.  It is a much raspier sound.  The higher
    values contain higher frequencies.  This is difficult to hear as pitch.
    What is important is to remember what each end of the range sounds
    like.



                                    Page 7








    You can make useful sounds just using noise.  Load in SNARE.SND.
    Experiment with the nominal noise value to hear the difference.  To
    hear examples using the noise LFO, load in NOISELFO.SND.  Remember the
    ADSR on noise does not affect the volume of the noise.  The overall
    volume is controlled by the volume ADSR and LFO.  It will affect both
    the square wave and the noise.  The noise ADSR and LFO alter the
    frequency components of the noise.




    4 REFERENCE GUIDE



    4.1 GEM Menus


    4.1.1 FILE

    Open...       Open a file to be selected from an item selector.

    Close         Close current window (or click on upper left corner).

    New           Open a window with default sound (square wave).

    Save          Save file to disk using current name.

    Save as...    Save file to disk using name supplied in dialog box.

    (Both Save and Save as save two types of files:  .SND is the data file
    used by the editor.  .C is the source file used by a C application.)

    Quit          Exit the program.  A dialog box will ask if you want to
    save any open files whose data has been altered (same as Close).


    4.1.2 EDIT

    Volume        Open edit volume dialog box (^V or double-click).

    Frequency     Open edit frequency dialog box (^F or double-click).

    Noise         Open edit noise dialog box (^N or double-click).

    These menu items can be selected using the mouse or by entering the
    appropriate control code (^V, ^F, ^N).  To select Volume, press both
    Control and V on the keyboard simultaneously.  For Frequency, press
    Control and F, and for Noise, press Control and N.  Another method to
    open the edit box is to double-click on the desired area in the sound
    window.  By double-clicking anywhere in the area enclosing the ADSR and
    LFO marked Volume, you can edit volume.  The same is true for Frequency
    and Noise.




                                    Page 8








    4.1.3 PLAY

    Single sound  Play only the selected window.

    Ganged sound  Play all windows simultaneously.

    When you select either single or ganged, a check will appear next to
    your selection.  These choices act as a toggle, in other words, you can
    select either one, but not both.  When Single sound is selected,
    whenever you click on the speaker or note icon, only the sound in the
    current window will be heard.  When using a MIDI keyboard, you can play
    the sound in the current window on up to three keys simultaneously (3
    note polyphony).

    Ganged sound allows you to play all the sound displayed in windows on
    the desktop (up to three windows can be open simultaneously).  Whenever
    you click on the speaker or note icon, all sounds will be heard for
    their respective durations.  If you open an edit dialog box or change
    the duration, only the current window (the one with the gray bar on
    top) will be changed.  When playing a MIDI keyboard, a single key will
    play all the sounds.


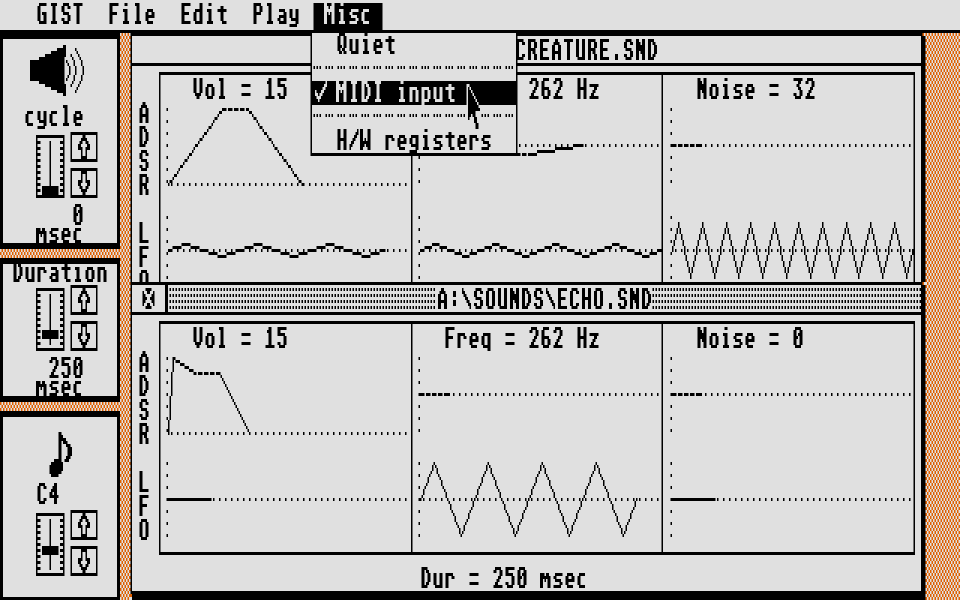

    4.1.4 Misc

    Quiet         Turn off all sounds

    MIDI          Enable/disable MIDI keyboard input

    H/W registers Display all Hardware registers of the GI chip



    4.2 EDIT DIALOG BOX CONTROLS

    When an edit dialog box is open, it will change the values of the
    currently selected window (the window with the gray bar on top).
    Regardless of the setting of Single sound or Ganged sound, only the
    current sound can be affected.

    All values are changed graphically using the mouse.  The ADSR and LFO
    values are displayed and updated as the graphs are modified.  To make a
    change, you must select with the mouse one of the small boxes at the
    junctions in the ADSR or LFO.  Select with the left mouse button either
    directly on the box, or by pushing the left mouse button and then
    moving the mouse over the box.  Once you release the mouse, the value
    will remain at its last value.  If the sound is currently being played,
    the change will not be heard until the mouse is released and the sound
    is restarted.

    The right mouse button is also used to change values, however, it is a
    fine tuning control.  This allows for value changes down to one-tenth
    of one Hertz.




                                    Page 9







    The value at the top of the edit box (volume, frequency or nosie) can
    be adjusted using its associated "fader" and the mouse (either the left
    or right button).  When frequency is set to zero, the square wave is
    disabled.  When noise is set to zero, the white noise is disabled.
    (When New has been selected under File, noise is set to zero, frequency
    is set to 262 Hz, and volume is set to 15.  All the ADSR and LFO
    controls are disabled.)  The arrows adjacent to the fader is for fine
    tuning control.  Click on the up arrow to increase the value or on the
    down arrow to decrease the value.  Either the left or right mouse
    button will work.  [The right mouse button will also allow fine tuning
    control of the noise fader on color monitors.]

    All the values are displayed as either msec or %.  All rates (Attack,
    Decay, Release, and LFO Rate) are displayed in milliseconds (msec,
    where 1000 msec = 1 second).  Levels (Peak, Sustain and LFO Amount) are
    expressed in percent (%).  In the case of volume, the sustain is
    expressed as a percentage of the actual volume value.  If the volume is
    12 and the sustain value is 75%, the actual sustain volume will be 9.

    With frequency, 100% corresponds to one octave above the frequency
    value and -100% is one actave below.  This applies to both LFO and
    ADSR.  If the frequency is 131 Hz and the sustain value is 100%, the
    actual sustain frequency will be 262 Hz.  The actual frequency range is
    from -300% to +800%.  This means the frequency ADSR extends over 11
    octaves!

    Noise can have a value of ranging from 0 to 32.  Zero means that noise
    is disabled.  32 indicates the highest noise frequency while 1
    indicates the lowest.  100% corresponds to the maximum value of 32 and
    -100% corresponds to 1.  50% corresponds to the initial value plus 16
    (50% of 32).  If your initial noise value is 16, it will reach maximum
    at 50%.  A sustain value any higher would have no effect.  If the
    initial value is 1, it will reach maximum at 100%.

    The noise sustain values are relative offsets, that is, the actual
    sustain value depends on the initial noise value.  If you consider the
    sustain values as offsets, 100% is 32, 50% is 16, 25% is 8, etc.  The
    noise value is the starting point for the ADSR and the percent value is
    a relative offset you add to the initial value to get the actual level.
    Of course the maximum value is 32.

    Therefore, if the noise value is 32 and the Peak is set to 100%, you
    will not hear a change.  However, if you start with a noise value of 1,
    you will hear the sound change from a crunching sound to a hissing
    sound as it "ramps up" from 1 to 32.  Conversely, if you start with a
    noise value of 32 and set the Peak to -100%, you will hear the sound
    change from a hissing sound to a crunching sound.

    Selecting OFF disables the ADSR or LFO.  Selecting ON will return the
    last used values to the LFO and for the ADSR will enable its
    operation.

    RESET will cause the sound to return to the values it had when you
    first opened the edit dialog box.  CANCEL will cancel any changes you
    made and close the dialog box, and OK will restore the current sound



                                    Page 10







    with the changes you have just made and close the dialog box.  RETURN
    on the keyboard will have the same effect as selecting OK.

    Selecting the mouse button and SHIFT allows you to move only in a
    vertical direction (so that you can modify sustain without affecting
    decay, or LFO amount without affecting freq).  Selecting the mouse
    button and ALTERNATE or CONTROL allows you to move only in a horizontal
    direction (thus modifying decay without affecting sustain, or LFO freq
    without affecting amount).

    Fine control is available using the right mouse button.  Use it in the
    same manner as the left when adjusting ADSR or LFO values.  However,
    the values will change by 5 for any value displayed in milliseconds, by
    1 for percent and by 0.1 for Hertz.  This is especially helpful on the
    LFO amount and rate.

    Attack        Move leftmost box on ADSR display left or right.

    Peak          Move leftmost box on ADSR display up or down.

    Decay         Move middle box on ADSR display left or right.

    Sustain       Move middle box on ADSR display up or down.

    Release       Move rightmost box on ADSR display left or right.

    When you first adjust an ADSR envelope, the Attack and Decay boxes
    appear on top of each other.  If you want to grab the Attack box,
    approach it from the left side and you will grab it first.  If you want
    the Decay box, approach it from the right.


    Delay         Move leftmost box on LFO display left or right.

    Amount        Move rightmost box on LFO display up or down.

    Freq          Move rightmost box on LFO display left or right.



    4.3 ICONS

    Speaker:  Plays sound using duration parameter.  If cycle value is
    greater than zero, it will play the sound with duration as specified
    above and repeat it every n milliseconds as displayed in the fader
    located underneath the word CYCLE.  The frequency of the sound played
    is determined by the value in the frequency edit dialog box.  If Ganged
    sound is checked, each sound will play with its respective duration and
    frequency.  If you change duration, it will affect only the current
    window.  If you change cycle, it will affect all the sounds.

    Note:     Plays a sound with the displayed MIDI pitch for as long as
    you hold down the mouse button.  When the mouse button is released, the
    sound will go into its release phase.  Pitch can be changed with the
    fader displayed directly underneath this icon.  If Ganged sound is



                                    Page 11







    checked, all sounds will be played with the pitch designated with the
    fader.




    5 ADVANCED USE:  SOUND DRIVER



    5.1 DESCRIPTION

    The GIST Sound Driver is an interrupt driven routine written in 68000.
    The Sound Driver operates under the 200 Hz system timer interrupt
    routine.  It is installed by changing the interrupt vector to point to
    the Sound interrupt routine.  It therefore executes before the regular
    system interrupt.  The interface between an application program and the
    Sound Driver consists of several short C language routines.




    5.2 PRIORITIES

    The Sound Driver was designed to allow effective playing of both sound
    effects and musical sounds.  Since there are only three channels
    available on the GI chip, it is important to organize your sound
    resources carefully.  The Sound Driver has a priority scheme built into
    it.  This allows you to assign priorities to each sound effect and the
    Sound Driver will determine which sound can play based on its
    priority.

    All you have to do to play a sound is request your specified sound to
    play on any available channel.  If all channels are currently playing a
    sound, your new sound can stil play!  You do not even have to worry
    about which channels are being used or by what sound.  When requesting
    a sound channel, a priority from 1 to 256 is assigned to the sound by
    the user.  If all the channels are busy, and the priority of the
    requested sound is greater than or equal to any of the currently
    playing sounds, the requested sound will then take over.

    In addition, the ADSR envelope allows for any sound to interrupt during
    the Release phase of the current sound.  Once the sound enters the
    Release phase, its priority is set to zero.  It will still play its
    release unless another sound tries to get that channel.  This increases
    the probability of a channel being available at any time.  It also
    allows the most important part of the sound to be heard.  If you
    require a high density of sound, this technique will be very
    effective.

    It also allows you to write your own music driver that can assign
    priorities to each "track" (a single monophonic voice) of music.  For
    example, you can be playing a track of music with a priority of 10, but
    if there is a sound effect that must occur, you can assign its priority
    15.  When the sound effect is over, the music will continue playing.



                                    Page 12








    However, priorities are only assigned on snd_on calls, not on snd_off.
    This means that before turning off a musical note, it is good practice
    to get the priority of the current sound being played on the voice you
    are going to issue a snd_off.  The routine get_prior is available for
    this purpose.  If the returned priority is greater than that of your
    musical note, the voice has been interrupted and your music driver
    should not turn it off.  If you do not follow this rule, a sound effect
    can interrupt your music, but as soon as the musical note that was
    interrupted is over, a snd_off will be issued that instead will turn
    off your sound effect.

    The Sound Driver has been designed to be called from within an
    interrupt routine.  The XBIOS routine for the GI chip (Giaccess) can
    NOT be called from an interrupt routine.  For this reason trap #9 is
    used as a means of altering the GI hardware registers.  Naturally, the
    application must not use trap #9 for its own purposes.





    5.3 SOUND FILES AND DATA

    When using GIST, each sound is saved as a C source file, in which a
    label is generated that is the same as the file name (without the .C
    extension).  This label is the name of an array of WORD's representing
    the sound data.  You may want to create one large include file, or you
    can include each sound separately.

    The data displayed in the dialog edit boxes in GIST is not always the
    same format as the data sent to the sound registers of the ST.  Volume
    is the same; zero is minimum and fifteen is maximum.  The frequency
    values are displayed in two ways.  The actual frequency is displayed in
    Hertz.  Although this is not the actual value used by the GI chip, it
    is more convenient to use when designing sounds than a number between 0
    and 4095.  Since a frequncy of 0 is not a useful frequency, that value
    is used to turn off the tone generator.

    When considering the sustain of the frequency ADSR, 100% corresponds to
    one octave.  If the initial frequency is 100 Hz, a sustain at 100% is
    200 Hz.  An initial frequency of 1000 Hz has a sustain of 2000 Hz at
    100%.  Percent is a more convenient term than Hertz in this case
    because the sustain value will change depending on the initial
    frequency.  By using percent, the value will be consisten with the
    audible change.  One octave will be designated by 100%, not a change of
    100 Hz in one case and 1000 Hz in another.

    The values for noise are exactly the opposite of what they are on the
    GI chip.  GIST uses the value of 0 for noise to indicate it is
    disabled.  A value of 32 indicates the highest frequency of noise, 1
    indicates the lowest.  We find this to be a more sensible way of
    displaying the noise values.





                                    Page 13









    5.4 HOW TO PLAY A SOUND

    The routine to turn a sound on requires as parameters only the pointer
    to the sound and its priority.  The information for pitch, volume and
    duration are part of the sound data.  The channel can be chosen by the
    Sound Driver based on the priority of the sound.  Once the duration of
    the sound has elapsed, it will be turned off automatically by the Sound
    Driver.

    However, if you want to turn a sound on from a music driver in your
    game or application, the same routine is used.  By specifying the pitch
    of the sound, it is treated as a musical tone.  This means the sound
    will remain at its sustain level until turned off by your music driver.
    Remember, becuase of the ADSR, all sounds are capable of being
    sustained for an indefinite period.  This is a desirable feature when
    playing music.




    5.5 IMPLEMENTATION

    In order to use the Sound Driver, there are separate folders on the
    master disk:  Megamax, Alcyon, Lattice and GST.  Within each folder are
    the object files required and a sample Make file or Link file.  Also on

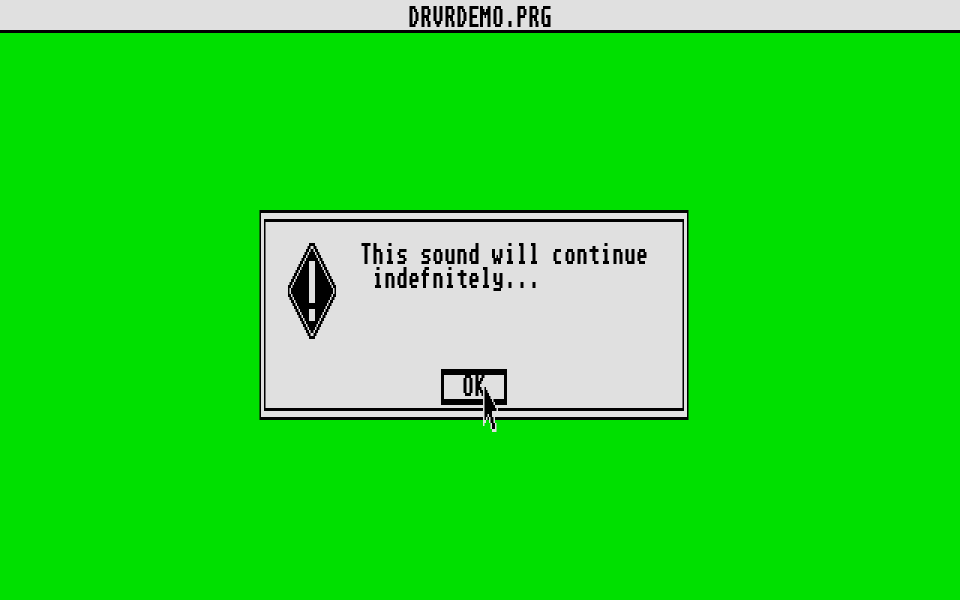

    the master disk is a file named DRVRDEMO.C (There is a special
    DRVRDEMO.GST is the demo GST program).  This C program will use all the
    Sound Driver routines.  For GFA Basic and Personal Pascal, there are
    folders called GFABASIC and PASCAL.  Refer to the DRVRDEMO.BAS and
    DRVRDEMO.PAS in the appropriate folders for specific instructions.
    Below is a description of all the Sound Driver routines.


    Install_int will install the interrupt routine.  The vector for the 200
    Hz system timer interrupt routine is set to point to the Sound
    interrupt routine.  This routine MUST be called after appl_init and
    before any of the below routines are called.

    Calling sequence is:

    install_int()


    Remove_int will remove the interrupt routine.  The 200 Hz system timer
    interrupt routine vector is returned to its normal location.  This
    routine MUST be called prior to appl_exit.  None of the below routines
    should be called after this routine.

    Snd_on  will play a sound that was created using GIST and stored as a C
    source code on a channel of the GI chip.

    Calling sequence is:




                                    Page 14







    snd_on(sndptr,voice,volume,pitch,priority)

    where:

    WORD     *sndptr   =    the pointer to the array of parameters known as
    sound data, e.g., drwho[].

    WORD     voice     =    the voice number corresponding to the GI
    channel number 0, 1, or 2.  A -1 tells the sound driver to use any
    available channel.
    WORD     volume    =    volume of the sound (0-15) or -1 to use volume
    stored with sound data.

    WORD     pitch     =    the pitch of the sound.  When playing sound
    effects, (pitch= -1) the sound will play using the frequency value in
    the sound data; the duration is determined by the duration value in the
    sound data.  A sound_off will automatically be issued when the duration
    has elapsed.  When playing musical tones, pitch (24-108) corresponds to
    the semitone number (60 = middle C on a piano keyboard or 262 Hz; 72 =
    one octave above; this is the same as MIDI pitch numbers).  The sound
    will remain on until a sound_off is issued.  In other words, if pitch =
    -1, it is considered a sound effect.  If pitch is specified, it is
    considered a musical note.

    WORD     priority  =    priority of the sound (0-32767) where the
    higher the value, the higher the priority.  Equal values take
    precedence over each other.  When a snd_off is issued, the priority is
    reduced to zero during the release phase of any sound.  Thus, priority
    should normally set set to at least 1.

    The voice number used will be returned.  If no voice was available, -1
    is returned (NOTE:  type WORD is always returned except in GST which
    returns type int (32-bits)).


    Snd_off will cause the sound to move into its release phase and reduce
    the priority to zero.

    The calling sequence is:

    snd_off(voice)

    where:

    WORD     voice     =    the voice which is to be moved into its release
    phase (0, 1, or 2).  Any other value has no effect.


    Stop_snd will cause the sound to completely stop.  No matter what phase
    the sound is in (attack, decay, sustain, or release), the sound will
    end.  Unlike snd_off, there is no release.

    The calling sequence is:

    stop_snd(voice)



                                    Page 15








    where:

    WORD     voice     =    the voice which is to be stopped (0, 1 or 2).
    Any other value has no effect.


    Get_prior will return the priority of the requested voice.  This
    routine is useful if you have a case where a snd_off might turn off the
    wrong sound.  You can call get_prior and issue the snd_off only if the
    priority matches the original.

    The calling sequence is:

    get_prior(voice)

    where

    WORD     voice     =     the voice whose priority is requested (0, 1 or
    2).  (NOTE:  type WORD is always returned except in GST which returns
    type int (32-bits)).


    Init_snds will completely stop sound on all all channels.
    The calling sequence is:

    init_snds()



    END



























                                    Page 16

Ads - GIST

GIST Atari ad
About Us - Contact - Credits - Powered with Webdev - © Atarimania 2003-2025
