The Epic Saga of CORE WARS
CORE WARS is a computer game played both with and BY compu
ters. In Core Wars, two player-written computer programs, both
operating concurrently within the same segment of memory. A
program "loses" when it hits an instruction it cannot execute.
Core Wars is described more fully in the May 1984 issue of
Scientific American (in A.K. Dewdney's column "Computer Recrea
tions"); a short synopsis follows below:
Core Wars Battle Programs are written in a special Assem
bler-style language called Redcode, which defines only 9 oper
ations. Unlike regular assembly code, any arguments that an
instruction may have are considered to be contained within the
same memory location, so addressing is very simple. For example,
the instruction JMP -2 simply means jump back 2 locations before
this one -- JMP 0 would be an endless loop on that one location,
and JMP 1 simply moves to the next location -- essentially, a
"No-operation" Instruction.
Neither program originally knows where in memory the other
is, or even where the program itself has started -- however, the
memory segment used by Core Wars is "circular," and all address
ing is relative, so absolute memory addresses are not important.
The nine Redcode instructions are:
Instr: Arguments: Description/Result:
MOV A B B will equal A (A is unchanged)
ADD A B B will equal B + A (A unchanged)
SUB A B B will equal B - A (A unchanged)
JMP A Program will jump to A
JMZ A B Program will jump to A if B is zero
JMG A B Program will jump to A if B > 0
DJZ A B B will equal B - 1; if this is
zero, program jumps to A
CMP A B If A = B, skip the next instruction
DAT B B is data. IF A PROGRASM TRIES TO
EXECUTE A "DAT" STATEMENT,
IT LOSES IMMEDIATELY.
There are also three addressing modes, or ways in which
arguments can be presented. They are Direct, Indirect, and
Immediate. In Direct mode, the argument is taken as an offset to
the current address. This is the default mode. Thus, the state
ment DJZ 12 -1 would decrement the previous location, and if that
result were zero, would jump forward 12 locations (or if not
zero, it would move ahead one, normally).
In Indirect mode, denoted by the "@" symbol, the indicated
relative address contains a further relative address. Consider
the four-statement sequence: JMP @1
DAT 1
JMP 12
CMP -10 -11 . The first jump
statement will look for its argument in relative address +1. In
this example, it finds a 1, which RELATIVE TO THAT ADDRESS is 1
-- it points to the statement JMP 12. Had it been a 2, it would
have pointed to the CMP instruction. A -1 would have pointed to
the original JMP @1, and been an endless loop (assuming the enemy
program never changes either location). Had it been 0, the pro
gram would have jumped to the DAT ststement and been halted,
having "committed suicide."
Finally, Immediate mode takes the argument as an absolute
number, and is denoted by the "#" sign. CMP #2 -3 will chack to
see if the value at offset -3 is equal to 2. Immediate mode has
two special cases which are very important to Core Wars -- first,
a MOV statement with an Immediate argument in the first argument
will cause the argument addressed in the second argument to
become a DAT instruction (had the argument not been Immediate,
MOV would instead have copied everything, arguments and instruc
tions. Thus, a Battle Program can move itself around in memory).
This is a very handy way of planting "bombs" in the enemy pro
gram's code.
The second important thing to realize is that you can NOT
have an Immediate, or absolute, address. If the operating system
sees an Immediate-mode argument as an offset, it will automatic
ally assume an offset of zero, which can have disastrous results.
Which argument is which? The second, or "B" argument, is
the one that contains data for ADD, SUB, CMP, and the conditional
jump instructions. Thus, when the first instruction of the
Redcode sequence ADD #2 1
CMP 3 15 is performed, the second line will be
changed to compare locations 3 and 17. The first, or "A" argument
is almost never altered by Redcode operations (except for MOV).

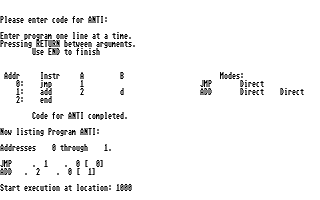

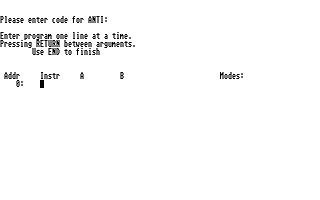

Both battle programs are executed by the Core Wars operating
system, MARS. In the version presented here, MARS is also the
program loader; programs may be loaded either from the keyboard
or from disk (when you give the program a name, it will check the
directory for that name -- if it finds it, it will load it from
disk, assuming the program to be an ASCII file). The MARS inter
preter simply keeps switching its program counter from one pro
gram to another -- ABABABABABABAB.... until either one program
loses, some maximum number of instruction cycles have been per
formed (as a safeguard against endless loops), or until you hit
Ctrl-E to abort.
Here is the shortest possible battle program, called "Imp":
MOV 0 1
Imp just copies the current location to the next location,
then advances to the next location, etc. While the original
program is short, it will eventually gobble up every memory
location if unchecked, thus becoming the largest possible battle
program as well. It can even spread to its opponent, since any
program that jumps to a location written by Imp will become an
identical clone of Imp.
Here is another program, "Anti.Imp":
MOV #0 -5
CMP #0 -6
JMP -1
MOV #0 -5
MOV #0 -6
MOV #0 -7
MOV #0 -8
JMP -7
Anti.Imp sets up a "marker" byte at -5 relative to its first
byte, then waits for Imp to come along. When the marker changes,
it bombards the area that Imp is movinbg into with DAT 0 instruc
tiomns, which Imp can't execute and thus bites it.
Finally, "AntiAnti.Imp":
MOV 4 @3
ADD #1 2
JMP -2
DAT 2
MOV 0 1
AntiAnti.Imp writes a block of code that LOOKS like Imp into
progressively higher memory locations. When Anti.Imp senses this
"drone" Imp, it will attack it, but to no avail -- it will still
get over-written, and then become a clone of Imp (at which point
it turns around and wreaks havoc on AntiAnti.Imp, which has no
protection against Imp itself as shown here....).
Other program examples are given in Dewdney's article, such
as Dwarf, which fires "Zero Bombs" in a fashion similar to Anti-
Anti.Imp; Gemini, which simply runs away; or Raidar, which is
able to "leapfrog" over advancing attacks. Players who develop
their own champions are welcome to append them to the
COREWARS.LBR.
Current Contents of COREWARS.LBR
COREWARS.LBR contains three main files: COREWARS.C,
MARS.COM, and COREWARS.DOC, which you are reading at this very
moment (and which I am writing at this very moment, but don't let
that fool you). MARS.COM is the compiled version of the C source
code as presented here (1000 memory locations, Heath or Telcon
terminal, cutoff after 2000 iterations). There are also four
Redcode program files: IMP, ANTI.IMP, ANTIANTI.IMP, and DWARF.
COREWARS.C was written in Small-C version 2.03 (M80), which
is available to the public domain through RCP/M's as well as
MicroCornucopia, and is absolutely the best C-compiler for the
money anywhere. However, BDS or UNIX users will be pleased to
find that its syntax matches that of normal C, and the addition
of a few << and >> operations will speed it up a bit if that's
your kind of scene.
5/25/84
Kevin A. Bjorke
