AVR/SND/DVSM STe/TT/Falcon Sample Player.
By Timothy Raine. Date 15/07/95
These programs are Public Domain.
I have a large selection of AVR sample files sampled at different
frequencies. It can be quite difficult finding the correct sample
so I decided to write a program who's whole purpose in life would
be to play AVR samples.
PLAY_AVR is a AVR STe/TT/Falcon compatiable Sample Player.
PLAY_AVR.PRG is a GEM single/multi-tasking version which can be run
in medium resolution and higher resolutions.
Falcon & TT Users Note : Their are no resolution checks in these
programs. Can Falcon & TT user's let me know about any problems as
this program has only been tested on a Atari STe due to the
unavailablity of a Falcon or TT computer.
The minimum memory requirements are « meg machines, but at least
one meg machines is recommended.
These programs are designed to play any AVR sample thrown at it!
The programs will automatically perform the following transformations
on AVR samples to make them compatiable with playback on the Atari
STe/TT/Falcon range of computers :
a. The program's will automatically convert 16 bit samples to 8 bit
samples ready for playback.
b. The program's will automatically resample samples which are not
at the playback frequencies of 6258Hz, 12517Hz, 25033Hz and
50066Hz. It will always resample at the nearest highest playback
c. The program's will automatically sign an unsigned sample.
The program can also be installed as an application by clicking once
on the program icon to highlight it and then selecting "Install
Application" from the menu bar "Options". At the "Document type" line
type in the file extension "AVR" and click on the button "Install".
Now when you want to load an AVR sample just double click on a sample
file and it will automatically load the AVR Sample Player program and
play the sample.
Note: Owners of alternative Desktop's such as "NeoDesk" can drag a
number of samples to the program file at the same time and they will
be automatically played in order. The number of samples that can be
played in this manner is dependent on the length's of the filepath
for each sample.
The File Header.
The program's examine the sample file header's and extract the
following information from them :
a. Sample Description.
b. Stereo or Mono Sample.
c. Number of Bits. (8 bit or 16 bit)
d. Signed or Unsigned Sample.
e. Sample Frequency in Hertz.
f. Sample Length.
From this sample header information various operations can be
triggered which will allow the sample to be played on an Atari
PLAY AVR was written in Lattice C v5.60 over a period of about a week.
WERC's was used for all the dialogs. The program is designed to be
foolproof - but there actually is not such a thing and problems can
arise especially as I could not test it on a Atari TT or Falcon
If there are any serious bugs or improvements you feel should be
added to the program, then feel free to contact me at the following
33 Thornville Road,
or Telephone on :
and ask for Tim.
Bye. Now where was that sample I was looking for....
Improvements over version dated: 23/04/95.
Now resamples samples at the correct speed.
The file selector now remains at the previously selected
filepath. (This now definitely works correctly now!)
Previously worked correctly only under Geneva.
Supplied with correct resource file. Previously distributed
with incorrect resource file.
program also now supports SND(Sun,Mac, Next) files
and DVSM (Atari Falcon) files.

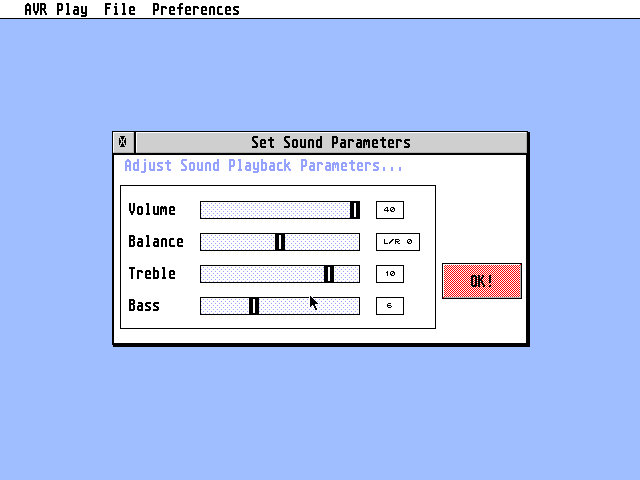

Added adjust volume, balance, treble and bass support.
Programmed a accessory which if used in conjunction with the
PLAY_AVR program adds Atari STF and STFM support.

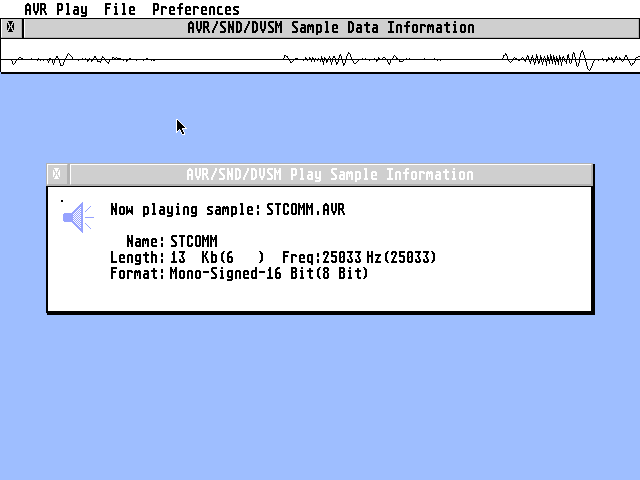

Added a display sample waveform window which displays what
the sample looks like.

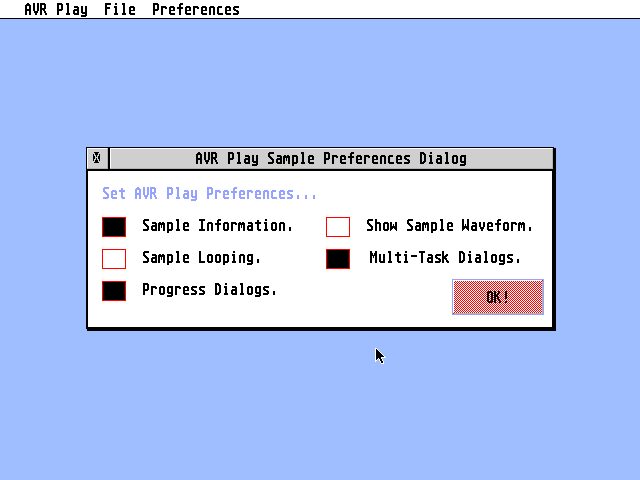

Added a save preferences option to the menu which allows you
to save some program defaults such as load in multi-tasking mode
or standard dialog mode, etc.
Various other bug fixes.
Improvements over version dated : 15/06/95
It's amazing how these bugs sneak in.
Fixed bugs to do with dialog windows closing as soon as
they are opened.
