Generic STOS Fixer v1.1
+ Usage instructions.
- drag & drop.
- command line.
- GEM based.
+ Falcon Compatibility.
+ Known Bugs/problems.
+ Legal stuff.
+ Contact info.
When STOS was written, it was decided that to improve the speed of some
commands the addresses of certain routines in the Operating System could
be stored in a table at the beginning of the program to prevent them having
to be looked up each time it is run. However, as these addresses change
with every new release of the Operating System STOS had to be updated.
While Mandarin still supported STOS this was OK, as they simply released
a new version with the updated table, along with any bug fixes. However,
as Mandarin no longer support STOS there have been no official releases
containing new tables for any version of TOS greater than TOS 1.62. To
get around this problem, any compiled STOS program can be 'fixed' which
simply means replacing the table with a suitable table for the OS version
- this is essentially what Mandarin would have done.
At this time, there are two STOS fixers available (with numerous versions),
the latest version of each is called STOS Fix 3. However, neither of these
is perfect. One, by Robert Quezada, only fixes the STOS program for the
CURRENT version of TOS, thus making it necessary for the end user of the
program, not the author to fix the program - this seems rather unprofessional.
The other (so I am told - I don't have it), from Goodmans PDL, is only
available from Goodmans, and is not available via FTP on the internet. Also,
it places an advert for Goodmans PDL on any STOS program fixed with it -again,
not very professional.
So, the solution is the Generic STOS Fixer. This fixes a STOS program for any
8 versions of TOS (unfortunately, at this time there are 14 versions, not
including MagiC). Which versions are used is determined by the DEFxxxx.DAT
files in the same directory as GENFIX.PRG, where xxxx is the TOS version
number, and also the settings if you have used the GEM interface.
Supplied with this program are DEFxxxx.DAT files for all existing TOS versions
from TOS 1.0 through to 4.92 except TOS 3.05 and 3.06 (if anyone has a TT, and
has a joystick, please get in touch - I would like to obtain these versions.)
Which files are omitted is up to the person fixing the program (I recommend
authors do this before releasing software..)
One interesting point is that if a STOS program is fixed for TOS 2.06, then it
appears to work under GEMulator - the ST emulator for the PC made by BraSoft.
I am currently in the process of trying to establish if STOS will run under
STonX - the ST emulator for Unix machines (eg Linux, SGI's, Sun's etc.) After
the success under GEMulator, I suspect that it will work.
This program will work in a number of ways -
1) Drag a file to the program icon (TOS 2.06 or greater required). This will
start up the fixer, which will attempt to fix the program. The DEFxxxx.DAT
files will be taken from the CURRENT directory - ie. the top window if this
option is set (or the applications directory, otherwise).
This does NOT start a GEM based version, and may well corrupt the screen
if running under MultiTOS. (Hmmm.... I'll have to check this...)
2) Enter the filename on the command line.This is very similar to the previous
method. Once again, this is not a GEM based method, and is suitable for
running from a command shell (eg BASH/KSH/CSH under MiNT).

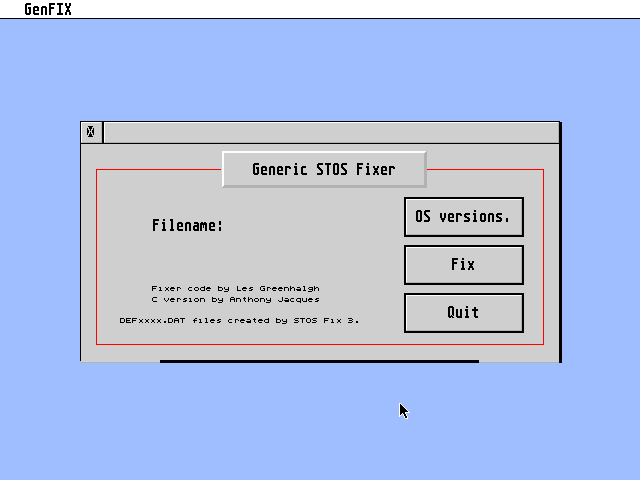

3) Double click on the program icon. This will start up the program as it
would any other. A GEM based shell is provided, which eases use of the
program. Note that it will be difficult (if not impossible) to use this
method in a resolution with < 640 pixels horizontally.
To actually perform the fixing process, select the 'Fix' button, and select
the program to fix with the file selector. Hopefully, it should now fix the
program. Once the fix has been completed, there should be a copy of the
program with the file extension renamed to .123 and the original program
should now work with the specified OS versions. (see notes on compatibility
However, before fixing it may be necessary to select which versions of TOS

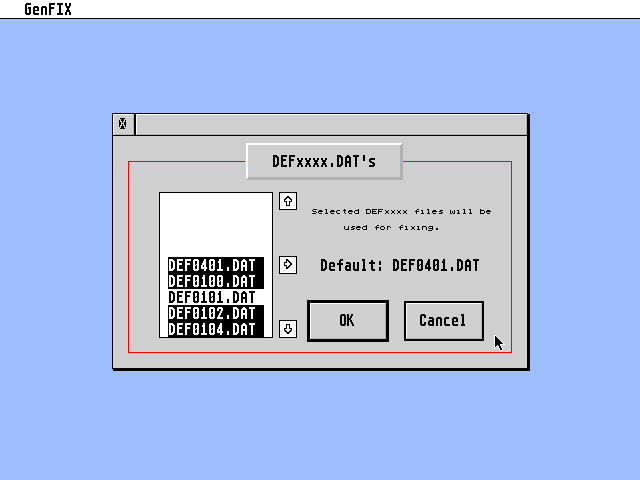

are to be fixed for. To do this, select 'OS Versions'. This will bring up a
In the scrollable list on the left are shown all of the DEFxxxx.DAT files
found. Any filename shown in white on black is selected, and will be used
when fixing - to [de]select a file, click on it with the mouse. Up to 8
files may be selected at any one time.
The 'default' file is the one which STOS will use if the required file is
not found. TO set this, line the file which you wish to be the default with
this line, and press the sideways arrow.
'Cancel' will restore the settings to the previous values, and 'Ok' will
accept any changes made. It should be noted that any changes will NOT be
saved, and so may need to be done every time.
The default settings for this should be OK for general purpose - if there
are more than 8 DAT files (12 are distributed with this release), then as
many OS versions excluding TOS 1.1 and 4.92 are selected as is possible.
These two are omitted as they are very rare. The default file is selected
to either be the first OS version found, or if there are any 4.0x versions,
this is chosen. This is because the tables for 4.01, 4.02 and 4.04 are all
identical - thus, it is a waste of space to include all 3. With the default
settings and files, TOS 1.0, 1.02, 1.04, 1.06, 1.62, 2.05, 2.06 and 4.01
should be selected. As 4.01 is the default, 4.02 and 4.04 should also be
You CAN use this program to fix the BASIC206.PRG program which launches the
STOS editor - simply fix in exactly the same way as any other STOS program.
This program will not necessarily fix a program which has already been fixed
by either this fixer, or either of the other two fixers available - always fix
straight after compilation to solve problems of this kind.
Also, programs which have been packed will not be fixable - use NewDepack from
Sinister Developments to decompress the program. (this program is no longer in
development as SD. have left the Atari scene. However, Mike Watson of Sinister
Developments is prepared to try and answer any questions via email.)
Programs which use extensions may still not work after being fixed - check the
Falcon compatibility section below for more details.
I cannot guarantee that all programs can be fixed. However, if after fixing it
successfully works on your machine, it probably works under all OS versions
that you have specified. If STOS Fix 3 by R.Quezada does not fix a program, it
is highly unlikely that this program will have any more luck.
The Falcon has a number of major changes from the ST - this causes programs
which have been written without considering these changes likely to cause a
crash. However, it is possible to write a program in STOS that will work
without problems on the Falcon.
The things to consider with regard to the Falcon are:
1) Dont pack your program with the 'Atomic Packer' as this crashes the Falcon.
- use PACK ICE instead. (Interesting note: in Top Notch's Missing Link
Extension documentation they say that the Falcon is very compatible - guess
which packer they used to pack the install program!)
2) Run the Falcon with a clean setup - hold down control while booting. This
will start the Falcon in ST-Low resolution, with no desk accessories/auto
boot programs but with the hard-drive active. Holding down 'Alternate' will
also disable the hard-drive.
3) Rename your program from PRG to TOS - This will cause the graphics commands
to work better. Always do this as there is no advantage to being a PRG file
(unless its a GEM program, which is currently impossible for a STOS
4) When using extensions, try and use Falcon tested commands - some extension
authors have done some nasty things which crash the Falcon. The following
extensions have been tested on the Falcon, and work without problems:
Maestro, Control, Extra, Ninja Tracker, Falcon (obviously), Compact,
Blitter and Compiler.
The Missing Link works, although a couple of commands do not - namely the
music/sample playing routines. Also, the 'P STOP' command causes the
keyboard handler to go a little mad (like the key repeat bug...).
The STE Extension, and any other STE extension probably work on the Falcon,
although there are slight differences in the way hardware scrolling works,
and also the lowest frequency provided on the STE DMA hardware is not valid
so will not generate any sound.
The following extensions do NOT work on the Falcon, and so should be
STOS Tracker (the one that uses .ABK files).
If at all possible you should try and get your STOS programs tested on a
Falcon before releasing it. However, if you cannot it is still worth doing the
above so that you have a higher chance of it working correctly.
Under AES 4.1 (and probably under MagiC) when the program is 'un-iconified'
the window may not be the correct size, and the dialogue incorrectly
There are redraw bugs an AES versions less than 3.30 (the Falcon's AES) where
the dialogue is draw 8 or 16 pixels too low (so I'm told). I am unable to test
this as this behaviour was not exhibited in any of the AES versions that I
have on my Falcon. (These are: 3.40, 4.0, 4.1, oAESis 0.6 and XaAES beta 2).
The entire program is loaded into memory - thus making it difficult to fix
BIG programs on a 520 (or maybe even 1040). [Thats fine with me - I have 4mb,
and may soon have more! :-)]
This program is released as FREEWARE. As such, this program may be distributed
in any form (PD libaries, electronic file transfer, coverdisks etc.) so long
as none of the files enclosed are modified, or omitted.
Also, there is no waranty that this program will work - explicit or implied.
This program directly modifies program files - thus there is a potential for
programs to be damaged - you fix programs AT YOUR OWN RISK. Always run
this program on a backup.
Although this program is Freeware, any donations are welcome, and would be
gratefully received. :-)
Original fixer code: Les Greenhalgh
C implementation: Anthony Jacques
created by: STOS Fix 3, by Robert Quezada
Thanks to everyone who sent me the DEFxxxx.DAT files so that I could build up
a complete collection... (excluding TT Tos).
70 West Avenue,
Bath and North East Somerset (BANES)
BA2 3QD (not sure if this is still the same after the change from Avon)
25 Balleratt Street
24 Park Avenue
I have no contact address for Robert - the email address in his
STOS Fix 3 documentation is no longer valid.
Well, thats about all you need to know....
Anthony Jacques, 11/2/96
8<- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
STOS Falcon Extension v1.3 - shareware (5 pounds registration)
+ true colour sprite routines - including NEW scale and fragment
+ DSP playback of 4-32 channel modules at 50khz 16-bit stereo.
+ full access to the sound system (including dsp processing).
+ 4 to 65536 colour graphics routines.
+ Playback of FLI and FLC animations in truecolour.
For more information, contact:
Anthony Jacques, 70 West Avenue, Oldfield Park, Bath. BA2 3QD
http://www.cs.man.ac.uk/~jacquesa/ or firstname.lastname@example.org
STOS Mailing list.
Are you a STOS user who is online? Well, if you have internet access, then you
can join the STOS mailing list and take part in STOS discussions/ask questions
to some of the best STOS programmers around - Martin Cubitt author of the
Extra Extension, ()rm of Digi Tallis and Anthony Jacques author of the STOS
Falcon Extension, as well as many other STOS programmers.
For more information, email: email@example.com
To subscribe send a mail to: firstname.lastname@example.org with the word subscribe in
the body of the email.
STOS FTP sites.
The biggest FTP site on the InterNET for STOS software is ftp.uni-kl.de STOS
stuff can be found in the pub/Atari/programming/STOS/ directory. If you are
using a WWW-browser such as Netscape, then the address is:-
Also worth a look is the funet archive in Finland (I believe the address is:
ftp.funet.fi but I'm not certain)
STOSSER WWW pages.
The biggest STOS related World Wide Web pages on the STOSSER homepage and can
be found at http://www.airtime.co.uk/stosser/ and contains links to all other
STOS related pages, and has lots of information about STOS products.
This is an internet project to create a Falcon (and perhaps TT/Eagle/Medusa)
version of Doom. At the moment this is in its early stages, but it is already
possible to wander around texture-mapped Doom, Doom 2 and Heretic levels. This
is a game which ALL Falcon owners will be interested in... It has been tested
on both the BlowUP-FX card, and also on the Afterburner040.
for more information, visit: http://rand.thn.htu.se/~johan/bad_mood.html or to
join the Bad Mood mailing list, email email@example.com with the word
subscribe in the subject line.
8<- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
