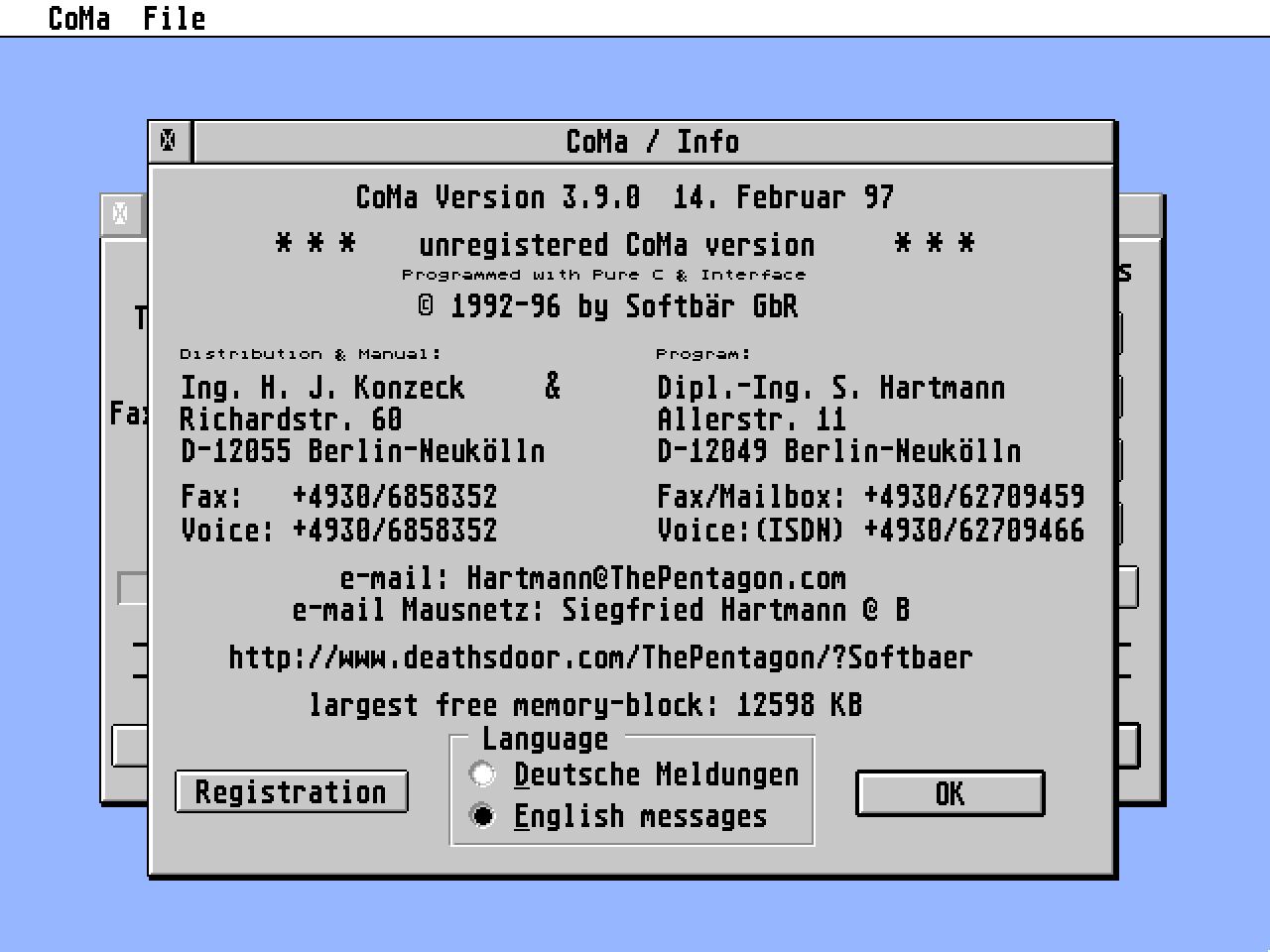

Program-Name: CoMa Voice/Pro 3.90 (COmmunication-MAnager)
purpose: To send & receive faxes, fax & voice-mail-system
answering machine, mini-mailbox with internal z-modem
Program-Type: Shareware / Crippleware
Author: Siegfried Hartmann
Hardware: Computer with MagiC, TOS or MultiTOS & MagiC Mac
- english documentation
- fax-class 2 & 2.0
- supports long filenames (31 characters)
- network-capable fax-job-management (3 jobs in 24 hours)
- internal editor with linemakeup/cut/copy/paste
- mini-mailbox with internal send&receive-z-modem
- extremely fast coding & decoding of fax-pages
- incoming pages are displayed already during the fax-reception !!
(even on 8 MHz-computers)
- mixing text with graphic-logos and signature
- up to 8 pages are simultaneously displayed
- polling (receive & send with class 2.0)
- all parameters are adjustable in dialog-windows
(no cryptical INF-file to edit)
- printing with HP-compatible printers and with GDOS.
- fax-&voice-number management
- management for incoming faxes
- automatic print after receive
- and many other features
* * * CoMa Voice additional:
- answering machine for ZyXEL, Creatix, Sporster VI and Smarty-modems
- 7 time-related messages
- remote control / recall of new received faxes
- recall of 7 special messages by DTMF-code
- DMA-sound output for ZxXEL ADPCM3-sounds with realtime-decoding
* * * CoMa Professional Version additional:
- fax & voice-mail-system
- it is possible to create 100 categories for recall with DTMF-Codes.
- each category can contain up to 100 messages and/or 100 fax-pages.
- it is possible to jump forward and backward between all single messages
using the DTMF-tones * and #
- statistic of category recalls
- first-level-messages can be put together from multiple voice-files.
- for the ftp-server (mini mailbox) you can assign personal passwords and
download-folders to as much users as your RAM allows
- unlimited fax-jobs
* * * Neu in CoMa 3.9.0
- internal receive z-modem implemented
- wildcards with * possible in mailbox
- 2. number for voice for each entry
- menu 'New Entry' & 'Dial Voice' for numbers
- double-ckick -> Dial Voice if voice-number available
- edit-box at Insert Number
- record- & fax-filenames with month
- try send-z-modem transfer 3 times
- display CONNECT-string
- display count of up- & downloads in calls-list
- set DTR always, if RI becomes activ
- several bug-fixes
* * *Troubleshooting for some modem
BZT modem
- do not work with 'ATZ' as init-string
use only 'AT'
- DTE-speed: many modem work only with 19200 baud in fax-mode
Creatix LC144VF
- firmware 1.4 has many mistakes, no data-connect in voice-mode, bad
regognition of fax-calling-tone, no silence recognition even in firmware
1.5
ZyXEL
- firmware 6.12 makes mistakes with 1496E if fax is received with 14400 bps
1496 EG and E+ or EG+ work without mistakes
- Firmware 6.13 ADCPM3 playback without sync does not work with 1496E
Smarty (R) 19.2 TI DNE 1126V.0.00.0622 Voice
- bad quality in ADCPM 2 and 3
- no play forward or play back of voice messages in these modi
- modem occures 'error' sometimes with 'ATV1'
- in voice mode the call can not be put back to the telephone
- when a message is played, no fax, data, or DTMF tones can be recognized
TKR TriStar, firmware 1.06
- DTMF tone 1 and 4 are not recognized
- no silence is recognized (same as creatix!)
- some frequency can not be created (512...555Hz, 768...811Hz and so on)
US Robotics/Courier
- S0 must be 255, if not, no automatic receive is possible
- to some receivers only sending one fax-page is possible
set 'ignore page error'
USR Sportster Vi Supervisor date: 13.10.95 / V 6.1.5 DSP date: 12.10.95 / V 1.2.5
- The end of the outgoing-message with DTE-Speed > 19200 is cut
- Data-calling-tone is not recognize
- All peep-tones have the same frequency
- redirect incoming-message is not possible
Elsa MicroLink 28.8 TQV
With firmware 1.19 the voice-mode does'nt work correctly - use firmware 1.16 !
1.23 has many problems, 1.24 seems to be ok
ZyXEL Elite ID
Firmware 2.03/1.12: crashes often
Firmware 2.04/1.13a: crashes sometimes
Firmware 2.05/1.14: crashes sometimes
--------------------------------------------------------------------------------
Fax/Mailbox: +4930/62709459 ISDN X.75 (64000 bps) & V.34 (28800 bps)
Voice: +4930/62709466
e-mail: Hartmann@ThePentagon.com Mausnetz: Siegfried Hartmann @ B
http://www.deathsdoor.com/ThePentagon/?Softbaer
|
| | | |
